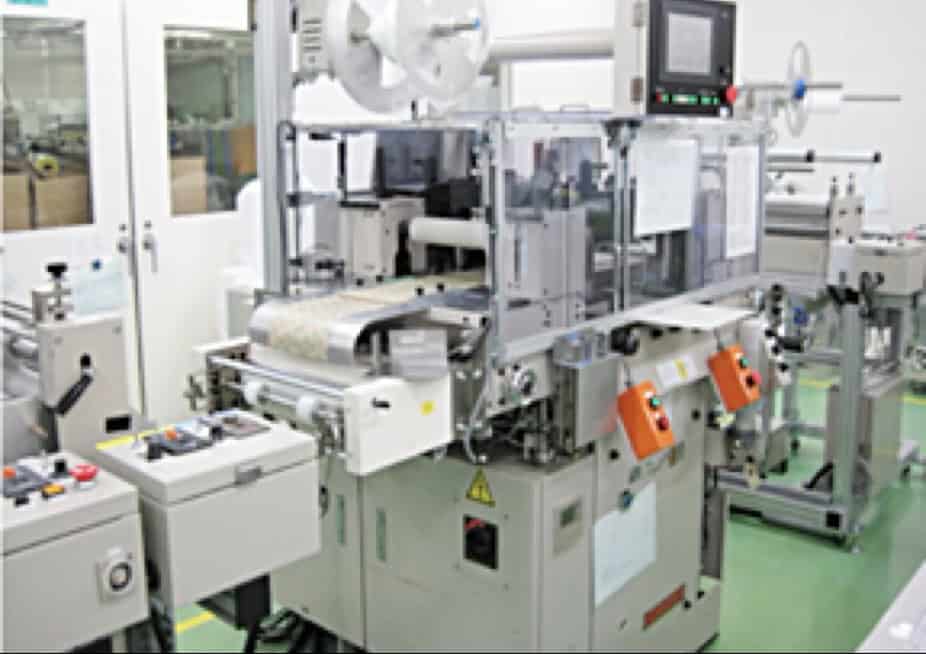

NC高速裁断機SP-350
| NC高速裁断機SP-350 | 1号機 | 2号機 | |
| 裁断 | Pressurization Capacity | １０ ｔｏｎ | １０ ｔｏｎ |
| Mold Dimensions (mm) | ３２０×３００ | ２７０×４２５ | |
| ３１０×４００ | |||
| Maximum Stroke Count | １８０ ｓｐｍ | １８０ ｓｐｍ | |
| Maximum Material Width | ３５０ ｍｍ | ３５０ ｍｍ | |
| Bottom Dead Center Setting Unit | ０．０１ ｍｍ | ０．０１ ｍｍ | |
| ラミネート | Product Axis | 3 Axes | 3 Axes |
| Separator Paper Rewinding Axis | 2 Axes | 2 Axes | |
| Maximum Material Width | ３５０ ｍｍ | ３５０ ｍｍ | |
| 巻き取り | ロス巻取り軸 | 1 Axis | 1 Axis |
| 製品巻取り軸 | 1 Axis | 2 Axes | |
| Maximum Material Width | ３５０ ｍｍ | ３５０ ｍｍ | |
| Cutter | Pressurization Capacity | ７ ｋＮ | ７ ｋＮ |
| Maximum Material Width | ３５０ ｍｍ | ３５０ ｍｍ | |

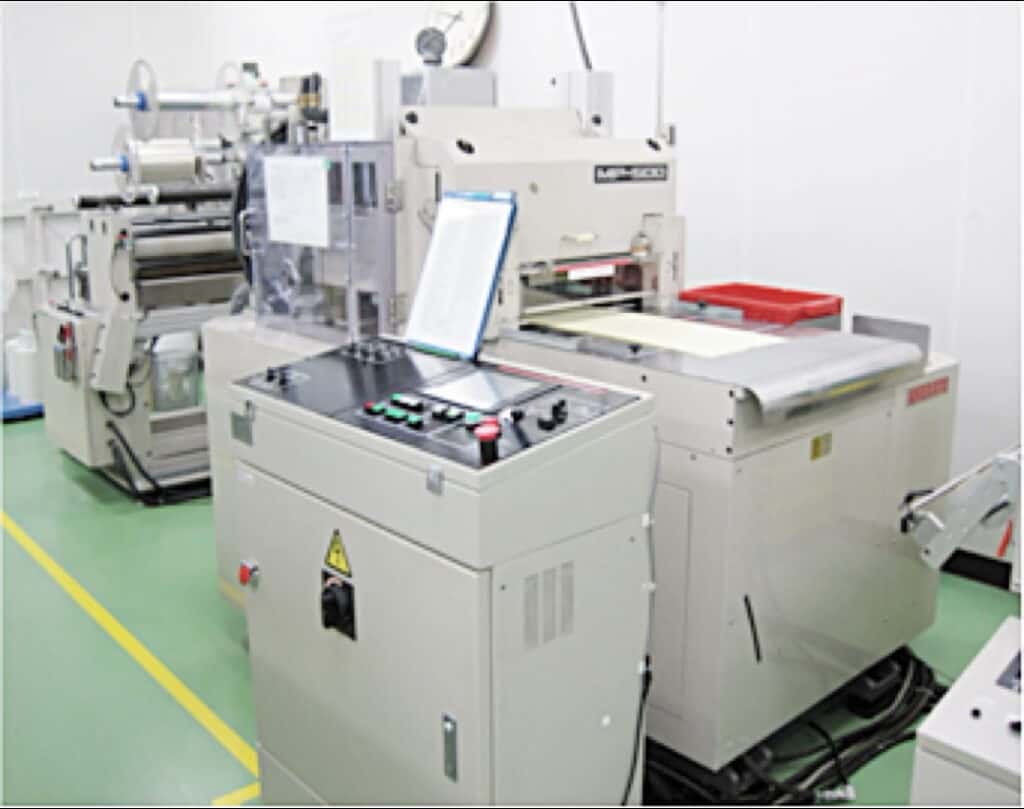

NC高速裁断機MP-500R
| NC高速裁断機MP-500R | 3号機 | |
| 裁断 | Pressurization Capacity | ３０ ｔｏｎ |
| Mold Dimensions (mm) | ４００×５５０ | |
| Maximum Stroke Count | １３０ ｓｐｍ | |
| Maximum Material Width | ５５０ ｍｍ | |
| Bottom Dead Center Setting Unit | ０．０１ ｍｍ | |
| ラミネート | Product Axis | 3 Axes |
| Separator Paper Rewinding Axis | 2 Axes | |
| Maximum Material Width | ５５０ ｍｍ | |
| 巻き取り | ロス巻取り軸 | 1 Axis |
| 製品巻取り軸 | 1 Axis | |
| Maximum Material Width | ５５０ ｍｍ | |
| Cutter | Pressurization Capacity | ７ ｋＮ |
| Maximum Material Width | ５５０ ｍｍ | |

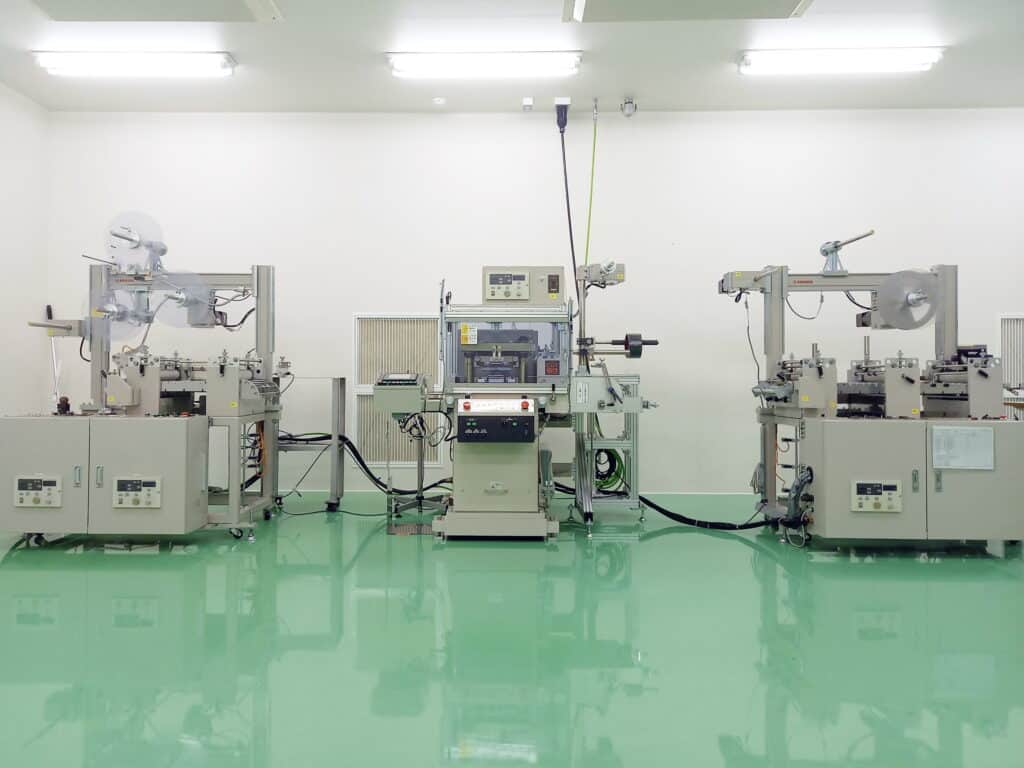

NC高速裁断機MP-200SR
| NC高速裁断機MP-200SR | 4号機 | |
| 裁断 | Pressurization Capacity | ４ ｔｏｎ |
| Mold Dimensions (mm) | ２３０×２８０ | |
| Maximum Stroke Count | ３００ ｓｐｍ | |
| Maximum Material Width | ２００ ｍｍ | |
| Bottom Dead Center Setting Unit | ０．０１ ｍｍ | |
| ラミネート | Product Axis | 3 Axes |
| Separator Paper Rewinding Axis | 2 Axes | |
| Maximum Material Width | ３５０ ｍｍ | |
| 巻き取り | ロス巻取り軸 | 4 Axes |
| 製品巻取り軸 | 3 Axes | |
| Maximum Material Width | ３５０ ｍｍ | |
| Cutter | Pressurization Capacity | ７ ｋＮ |
| Maximum Material Width | ２７０ ｍｍ | |

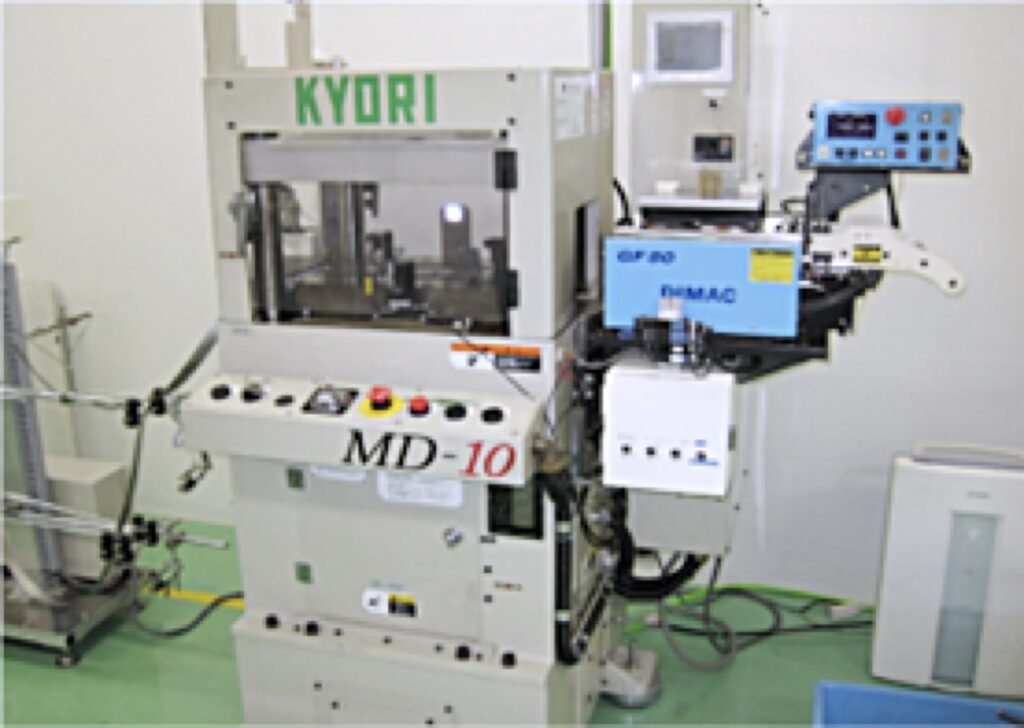

キョーリ社製 MD-10
| キョーリ社製 MD-10 | ||
| 精密スタンピンクプレス | Capacity | １００ ｋＮ |
| ストローク長さ （ｍｍ） | ２０/３０切替式 | |
| Stroke Count | ５０～３００ ｓｐｍ | |
| Die Height | ２１５/２１０ ｍｍ | |
| Slide Adjustment Amount | ３０ ｍｍ | |
| Slide Dimensions | ３８０×４００ ｍｍ | |
| Bolster Dimensions | ４００×３２０ | |
| ダイマック社製 GF-80 | ||
| NCグリップフィーダ | Feed Line Height | ９０±１０ |
| Feed Direction | 左→右（ｐｕｌｌ） | |
| Material Thickness | ０～０．８ ｍｍ | |
| Material Width | ８～８０ ｍｍ | |
| Feed Length | ０～５０mm *２４０ｓｐｍ | |
